BufferedInputStream为另一个输入流添加一些功能,即缓冲输入以及支持 mark 和 reset 方法的能力。在创建 BufferedInputStream 时,会创建一个内部缓冲区数组。在读取或跳过流中的字节时,可根据需要从包含的输入流再次填充该内部缓冲区,一次填充多个字节。mark 操作记录输入流中的某个点,reset 操作使得在从包含的输入流中获取新字节之前,再次读取自最后一次 mark 操作后读取的所有字节。

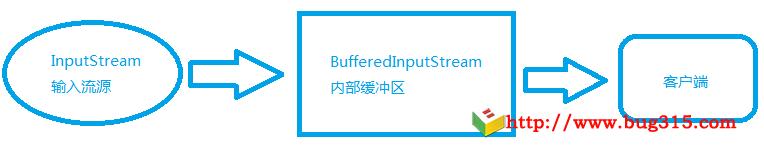

原理图如下:
从上面的图中可以看出,客户端获取数据不是直接获取输入源中的数据,而是从BufferedInputStream的内部缓冲区获取。当BufferedInputStream内部缓冲区数据取完了就从InptStream输入流源载入数据到内部缓冲区,然后客户端再重内部缓冲区中取。
BufferedInputStream.java源码:
package java.io; import java.util.concurrent.atomic.AtomicReferenceFieldUpdater; public class BufferedInputStream extends FilterInputStream { // 缓冲区默认大小(8KB) private static int defaultBufferSize = 8192; // 缓冲数组,注意该成员变量同样使用了volatile关键字进行 // 修饰,作用为在多线程环境中,当对该变量引用进行修改时 // 保证了内存的可见性。 protected volatile byte buf[]; // 缓存数组的原子更新器,该成员变量与buf数组的volatile // 关键字共同组成了buf数组的原子更新功能实现。 private static final AtomicReferenceFieldUpdater<BufferedInputStream, byte[]> bufUpdater = AtomicReferenceFieldUpdater.newUpdater(BufferedInputStream.class, byte[].class, "buf"); // 该成员变量表示目前缓冲区域中有多少有效的字节 protected int count; // 该成员变量表示了当前缓冲区的读取位置 protected int pos; // 表示标记位置,该标记位置的作用为: // 实现流的标记特性,即流的某个位置可以被设置为标记, // 允许通过设置reset(),将流的读取位置进行重置到该标 // 记位置,但是InputStream注释上明确表示,该流不会无 // 限的保证标记长度可以无限延长,即markpos=10,pos=139734, // 该保留区间可能已经超过了保留的极限 protected int markpos = -1; // 该成员变量表示了上面提到的标记最大保留区间大小,当 // (pos - markpos > marklimit)时,mark标记可能会被清除。 protected int marklimit; // 检查确保底层输入流不为空,如果为空则流被关闭了 private InputStream getInIfOpen() throws IOException { InputStream input = in; if (input == null) { throw new IOException("Stream closed"); } return input; } // 检查确保buffer不为空,如果为空则流被关闭了 private byte[] getBufIfOpen() throws IOException { byte[] buffer = buf; if (buffer == null) { throw new IOException("Stream closed"); } return buffer; } public BufferedInputStream(InputStream in) { this(in, defaultBufferSize); } // 用指定的InputStream和缓冲区大小创建一个BufferedInputStream对象 public BufferedInputStream(InputStream in, int size) { super(in); if (size <= 0) { throw new IllegalArgumentException("Buffer size <= 0"); } // 初始化缓冲区 buf = new byte[size]; } /** * 提供了缓冲区域的读取、写入、区域元素的移动更新。 * 假设它是被一个同步方法调用。这个方法也假设所有的数据都已经读入。 * 因此pos > count */ private void fill() throws IOException { byte[] buffer = getBufIfOpen(); if (markpos < 0) { /**如果不存在标记位置(即没有需要进行reset的位置需求) 则可以进行大胆地直接重置pos标识下一可读取位置,但是 这样不是会读取到以前的旧数据吗?不用担心,在后面的 代码里会实现输入流的新数据填充 */ pos = 0; } else if (pos >= buffer.length) { /** 位置大于缓冲区长度,这里表示已经没有可用空间了 */ if (markpos > 0) { /**表示存在mark位置,则要对mark位置到pos位置的数据予以保留, 以确保后面如果调用reset()重新从mark位置读取会取得成功 */ int sz = pos - markpos; /** 该实现是通过将缓冲区域中markpos至pos部分的移至缓冲区头部实现 */ System.arraycopy(buffer, markpos, buffer, 0, sz); pos = sz; markpos = 0; } else if (buffer.length >= marklimit) { /** 如果缓冲区已经足够大,可以容纳marklimit,则直接重置 */ markpos = -1; /** 丢弃所有的缓冲区内容 */ pos = 0; } else { /** 如果缓冲区还能增长的空间,则进行缓冲区扩容 */ int nsz = pos * 2; /** 新的缓冲区大小设置成满足最大标记极限即可 */ if (nsz > marklimit) { nsz = marklimit; } byte nbuf[] = new byte[nsz]; // 将原来的较小的缓冲内容COPY至增容的新缓冲区中 System.arraycopy(buffer, 0, nbuf, 0, pos); // 这里使用了原子变量引用更新,确保多线程环境下内存的可见性 if ( !bufUpdater.compareAndSet(this, buffer, nbuf) ) { // Can't replace buf if there was an async close. // Note: This would need to be changed if fill() // is ever made accessible to multiple threads. // But for now, the only way CAS can fail is via close. // assert buf == null; throw new IOException("Stream closed"); } buffer = nbuf; } } count = pos; // 从原始输入流中读取数据,填充缓冲区 int n = getInIfOpen().read(buffer, pos, buffer.length - pos); // 根据实际读取的字节数更新缓冲区中可用字节数 if (n > 0) { count = n + pos; } } public synchronized int read() throws IOException { if (pos >= count) { /** 表示读取位置已经超过了缓冲区可用范围,则对缓冲区进行重新填充 */ fill(); /** 当填充后再次读取时发现没有数据可读,证明读到了流末尾 */ if (pos >= count) return -1; } /** 这里表示读取位置尚未超过缓冲区有效范围,直接返回缓冲区内容 */ return getBufIfOpen()[pos++] & 0xff; } /** * Read characters into a portion of an array, reading from the underlying * stream at most once if necessary. */ private int read1(byte[] b, int off, int len) throws IOException { int avail = count - pos; if (avail <= 0) { /** 如果读取的长度大于缓冲区的长度并且没有markpos, 则直接从原始输入流中进行读取,从而避免无谓的 COPY(从原始输入流至缓冲区,读取缓冲区全部数据,清空缓冲区, 重新填入原始输入流数据)*/ if (len >= getBufIfOpen().length && markpos < 0) { return getInIfOpen().read(b, off, len); } /** 当无数据可读时,从原始流中载入数据到缓冲区中 */ fill(); avail = count - pos; if (avail <= 0) return -1; } int cnt = (avail < len) ? avail : len; /** 从缓冲区中读取数据,返回实际读取到的大小 */ System.arraycopy(getBufIfOpen(), pos, b, off, cnt); pos += cnt; return cnt; } public synchronized int read(byte b[], int off, int len) throws IOException { getBufIfOpen(); // Check for closed stream if ( (off | len | (off + len) | (b.length - (off + len))) < 0 ) { throw new IndexOutOfBoundsException(); } else if (len == 0) { return 0; } int n = 0; for (;;) { int nread = read1(b, off + n, len - n); if (nread <= 0) return (n == 0) ? nread : n; n += nread; if (n >= len) return n; // if not closed but no bytes available, return InputStream input = in; if (input != null && input.available() <= 0) return n; } } public synchronized long skip(long n) throws IOException { getBufIfOpen(); // Check for closed stream if (n <= 0) { return 0; } long avail = count - pos; if (avail <= 0) { //如果没有mark标记,则直接从原始输入流中skip if (markpos <0) return getInIfOpen().skip(n); // Fill in buffer to save bytes for reset fill(); avail = count - pos; if (avail <= 0) return 0; } // 该方法的实现为尽量原则,不保证一定略过规定的字节数 long skipped = (avail < n) ? avail : n; pos += skipped; return skipped; } public synchronized int available() throws IOException { return getInIfOpen().available() + (count - pos); } public synchronized void mark(int readlimit) { marklimit = readlimit; markpos = pos; } public synchronized void reset() throws IOException { getBufIfOpen(); // Cause exception if closed if (markpos < 0) throw new IOException("Resetting to invalid mark"); // 将当前读取位置设置为最后的标记位置 pos = markpos; } public boolean markSupported() { return true; } public void close() throws IOException { byte[] buffer; while ( (buffer = buf) != null) { // 用线程安全的方式将内部缓冲区引用设置为空 if (bufUpdater.compareAndSet(this, buffer, null)) { InputStream input = in; in = null; if (input != null) input.close(); // 关闭输入流 return; } // Else retry in case a new buf was CASed in fill() } } }
从上面的源码可以分析出,BufferedInputStream实际上就是将我们的输入流进行包装,提供缓存功能。让我们避免经常直接与IO设备打交道,这样就能提高IO读取的效率。
下面我们来看一个实例:使用BufferedInputStream来读取一个字节文件的数据,然后输出到终端。
import java.io.BufferedInputStream; import java.io.File; import java.io.FileInputStream; public class BufferedInputStreamTest { public static void main(String[] args) throws Exception { FileInputStream in = new FileInputStream(new File("document/stream_test.txt")); BufferedInputStream bufferedInput = new BufferedInputStream(in); byte[] buffer = new byte[1024]; int len = -1; while ( (len = bufferedInput.read(buffer)) != -1 ) { System.out.println(new String(buffer, 0, len)); } bufferedInput.close(); in.close(); } }
