Dialog 是一个带标题和边界的顶层窗口,边界一般用于从用户处获得某种形式的输入。 Dialog 的大小包括边界所指定的任何区域。边界区的维度可以使用
getInsets
方法获得,但是,由于这些维度是依赖于平台的,因此只有通过调用 pack
或
show
将 dialog 设置为可显示的,才能获得有效的 insets 值。由于 dialog
的总大小包括了边界区,因此边界有效地模糊了 dialog 的部分区域,约束了可用于在矩形中呈现或显示子部件的区域,矩形左上角的位置为
(insets.left, insets.top)
,宽度为 width - (insets.left +
insets.right)
,长度为 height - (insets.top + insets.bottom)
。
Dialog 的默认布局为 BorderLayout
。
Dialog 可以使用 setUndecorated
关闭本机装饰(例如 Frame & Titlebar)。只有在
dialog 不是 displayable
时才能完成此操作。
Dialog 在构造时必须有一个框架,或者将另一个 dialog 定义为它的所有者。当可见的 dialog 的所有者窗口被最小化时,dialog 会自动隐藏为对用户不可见。当所有者窗口被还原时,dialog 重新又变为用户可见的。
dialog 可以是无模式的(默认情况下)或有模式的。一个有模式的 dialog 将阻断输入到应用程序中其他所有顶层窗口的内容(将此 dialog 作为其所有者创建的窗口除外)。
Dialog 能够产生以下
WindowEvents
:WindowOpened
、WindowClosing
、WindowClosed
、WindowActivated
、WindowDeactivated
、WindowGainedFocus
、WindowLostFocus
。
java广告位
实例:
import java.awt.*; import java.awt.event.*; public class TestDialog implements ActionListener{ private Label info; private Dialog loginDialog; private Dialog quitDialog; private TextField tf_name; private TextField tf_psw; public static void main( String args[]) { new TestDialog().init(); } public void init(){ Frame f = new Frame("注册窗口"); Button login = new Button("登录"); Button regist = new Button("注册"); Button help = new Button("帮助"); Button exit = new Button("退出"); Panel p = new Panel(); p.setLayout(new GridLayout(1,4)); p.add(login); p.add(regist); p.add(help); p.add(exit); info = new Label("您尚未登录"); f.add(p,"North"); f.add(info,"Center"); login.addActionListener(this); exit.addActionListener(this); f.addWindowListener(new WindowAdapter(){ public void windowClosing(WindowEvent e){ TestDialog.this.quit(); } }); f.setSize(500,350); f.setLocation(450,200); f.setVisible( true); loginDialog = this.createLoginDialog(f); quitDialog = this.createQuitDialog(f); } public Dialog createLoginDialog(Frame f){ Dialog d = new Dialog(f,"登录对话框",true); Label note = new Label("请输入注册信息"); Panel pa = new Panel(); pa.setLayout(new GridLayout(2,1)); pa.add(new Label("用户名:")); pa.add(new Label("密 码:")); Panel pc = new Panel(); pc.setLayout(new GridLayout(2,1)); tf_name = new TextField(); tf_psw = new TextField(); tf_psw.setEchoChar('*'); pc.add(tf_name); pc.add(tf_psw); Panel pb = new Panel(); pb.setLayout(new GridLayout(1,2)); Button submit = new Button("提交"); Button cancel = new Button("取消"); submit.setActionCommand("submitLogin"); cancel.setActionCommand("cancelLogin"); submit.addActionListener(this); cancel.addActionListener(this); pb.add(submit); pb.add(cancel); d.add(note,"North"); d.add(pa,"West"); d.add(pc,"Center"); d.add(pb,"South"); d.setSize(160,120); d.setLocation(400,200); return d; } public Dialog createQuitDialog(Frame f){ Dialog d = new Dialog(f,"确认退出对话框",true); Label note = new Label("您确定要退出程序吗?"); Panel p = new Panel(); //p.setLayout(new GridLayout(1,2)); Button confirm = new Button("确定"); Button cancel = new Button("取消"); confirm.setActionCommand("confirmQuit"); cancel.setActionCommand("cancelQuit"); confirm.addActionListener(this); cancel.addActionListener(this); p.add(confirm); p.add(cancel); d.setSize(160,120); d.setLocation(400,200); d.add(note,"Center"); d.add(p,"South"); return d; } public void actionPerformed(ActionEvent e){ String s = e.getActionCommand(); if(s.equals("登录")){ loginDialog.setVisible(true); }else if(s.equals("退出")){ this.quit(); }else if(s.equals("confirmQuit")){ System.exit(0); }else if(s.equals("cancelQuit")){ quitDialog.setVisible(false); }else if(s.equals("submitLogin")){ String name = tf_name.getText(); String password = tf_psw.getText(); if(name.equals("Scott") && password.equals("Tiger")){ info.setText("欢迎您: " + name + " 用户"); }else{ info.setText("验证失败,错误的用户名/密码!"); } loginDialog.setVisible(false); }else if(s.equals("cancelLogin")){ loginDialog.setVisible(false); } } public void quit(){ quitDialog.setVisible(true); } }

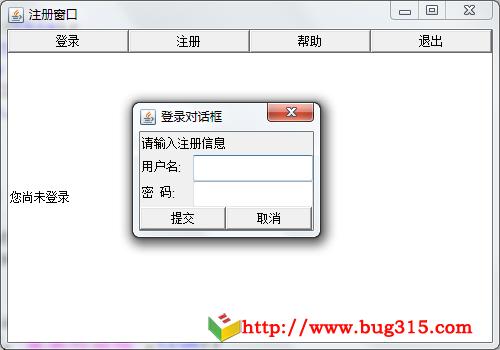

效果图:
