SpringCloud Feign入门实例

本文章将简单介绍Spring Cloud中怎样使用Feign去调用服务。

什么是Feign?

Feign是从Netflix中分离出来的轻量级项目,能够在接口上添加注释,成为一个REST API 客户端,使得Java HTTP客户端编写更方便。FeignFeign的灵感来源于Retrofit、JAXRS-2.0和WebSocket。

Feign中对 Hystrix 有依赖关系。Feign只是一个便利的REST框架,简化调用,最后还是通过ribbon在注册服务器中找到服务实例,然后对请求进行分配。

为什么选择Feign而不是其他?

你可以使用Jersey和CXF这些来写一个Rest或SOAP服务的Java客服端。你也可以直接使用Apache HttpClient来实现。但是 Feign 的目的是尽量的减少资源和代码来实现和 HTTP API 的连接。通过自定义的编码解码器以及错误处理,你可以编写任何基于文本的 HTTP API。

Feign工作机制

Feign 通过注解(Annotation)注入一个模板化请求进行工作。只需在发送之前关闭它,参数就可以被直接的运用到模板中。然而这也限制了Feign,只支持文本形式的API,它在响应请求等方面极大的简化了系统。同时,它也是十分容易进行单元测试的。

Feign实例

该实例启动一个eureka-server注册中心,然后启动两个server,端口分别是8762和8763,注册到eureka-server注册中心,然后使用feign进行声明式调用。项目结构如下图:

SpringCloud Feign入门实例

其中:

  • chapter3-eureka-server:Eureka服务注册中心

  • chapter3-service-hi:server服务(需要启动两个服务,端口分别为8762和8763)

  • chapter3-service-ribbon:使用RestTemplate+Ribbon实现负载均衡调用

  • chapter3-service-feign:使用Feign进行声明式负载均衡调用

添加Maven依赖

项目中用到的其他Maven依赖这里不在赘述,下面只介绍引入Feign的依赖,如下:

<dependency>
  <groupId>org.springframework.cloud</groupId>
  <artifactId>spring-cloud-starter-feign</artifactId>
</dependency>

创建chapter3-service-feign模块

对于chapter3-eureka-server、chapter3-service-hi和chapter3-ribbo模块这里就不在一一创建,如果不会,可以参考前面的实例。这里主要介绍怎样创建chapter3-service-feign模块,具体步骤如下:

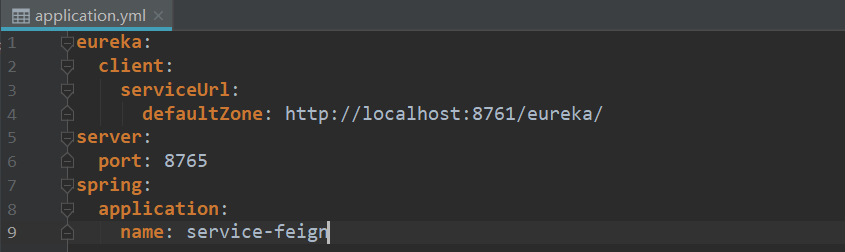

(1)修改application.yml配置文件

SpringCloud Feign入门实例

(2)添加maven依赖,<dependencies>标签代码如下:

<dependencies>
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-eureka</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-feign</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
    <scope>test</scope>
    </dependency>
</dependencies>

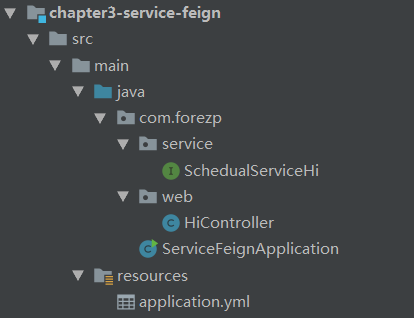

(3)编写Java代码,Java代码结构如下图:

SpringCloud Feign入门实例

ServiceFeignApplication.java

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.netflix.feign.EnableFeignClients;
@SpringBootApplication
//@EnableDiscoveryClient
@EnableEurekaClient
@EnableFeignClients
public class ServiceFeignApplication {
    public static void main(String[] args) {
        SpringApplication.run(ServiceFeignApplication.class, args);
    }
}

上面代码中,通过注解@EnableEurekaClient开启Eureka Client的功能(@EnableDiscoveryClient也能实现同样的功能),通过注解@EnableFeignClients开启Feign Client的功能。

SchedualServiceHi.java

import org.springframework.cloud.netflix.feign.FeignClient;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RequestParam;
// service-hi 表示服务名称
@FeignClient(value = "service-hi")
public interface SchedualServiceHi {
    // 映射请求
    @RequestMapping(value = "/hi", method = RequestMethod.GET)
    String sayHiFromClientOne(@RequestParam(value = "name") String name);
}

上面代码中,实现一个简单的Feign Client,新建一个EurekaClientFeign 的接口,在接口上加@FeignClient 注解来声明一个 Feign Client,其中value为远程调用其他服务的服务名。在EurekaClientFeign接口内部有一个sayHiFromClientEureka()方法,该方法通过 Feign 来调用eureka-client 服务的“/hi”的API接口。

HiController.java

import com.forezp.service.SchedualServiceHi;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;
@RestController
public class HiController {
    @Autowired
    private SchedualServiceHi schedualServiceHi;

    @RequestMapping(value = "/hi",method = RequestMethod.GET)
    public String sayHi(@RequestParam String name){
        return schedualServiceHi.sayHiFromClientOne(name);
    }
}

上面代码中,@RestController注解表示这是一个REST Http服务,在sayHi()方法中通过SchedualServiceHi接口去调用chapter3-service-hi服务。

项目源码地址:

https://gitee.com/hxstrive/spring_learning/tree/master/spring_cloud/springcloud_learn1/chapter3
