Spring Cloud OpenFeign 教程

Spring Cloud OpenFeign 环境准备

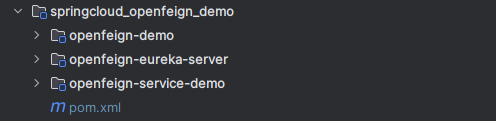

为了后续顺利学习 Spring Cloud OpenFeign，下面将介绍如何准备学习环境，该环境主要包含两个服务，一个注册中心 Eureka，另一个示例服务 service-demo，该服务将提供简单的 GET、POST、PUT 等简单服务，用于 Spring Cloud OpenFeign 调用。项目结构如下图：


JDK

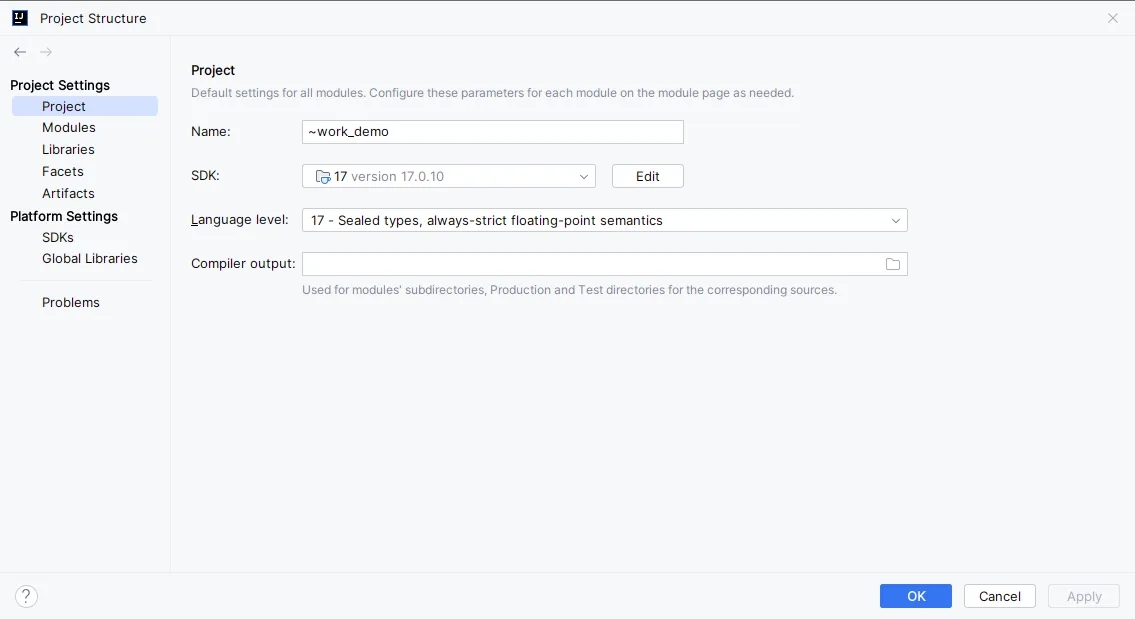

本教程采用 JDK17，如下图：

cc0f8df1a9dd48c42cdffc2b77aed790_1731033380189-f85b26f2-573b-4337-b8ec-844d35ea0620_x-oss-process=image%2Fformat%2Cwebp.png

Eureka 服务

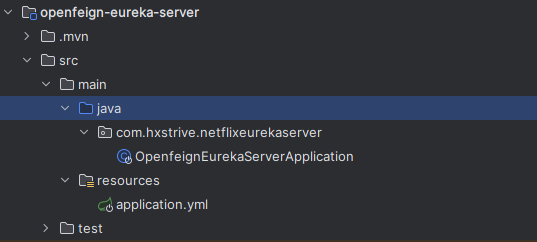

Eureka 是 Netflix 开源的一个服务发现框架，主要用于在分布式系统中实现服务注册和发现的功能（点击快速学习）。项目结构如下图：


上述项目中，仅有一个 application.yml 配置，和一个启动类 NetflixEurekaServerApplication。

添加 Maven 依赖

pom.xml 内容如下：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.2.9</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.hxstrive</groupId>
    <artifactId>openfeign-eureka-server</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>netflix-eureka-server</name>
    <description>netflix-eureka-server</description>

    <properties>
        <java.version>17</java.version>
        <spring-cloud.version>2023.0.3</spring-cloud.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <finalName>netflix-eureka-server</finalName>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

application.yml 配置

application.yml 配置内容如下：

# 默认端口
server:
  port: 8761

# 应用名称
spring:
  application:
    name: eureka-server

# Eureka 配置
eureka:
  # 指定 Eureka 服务实例自身的主机名
  instance:
    hostname: localhost
  client:
    register-with-eureka: false
    fetch-registry: false
  server:
    enable-self-preservation: true
    renewal-percent-threshold: 0.5

服务启动类

下面是一个简单的 Spring Boot 启动类，该类上额外添加了 @EnableEurekaServer 注解，用于标记该服务是一个 Eureka 服务器，代码如下：

package com.hxstrive.netflixeurekaserver;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

/**
 * 启动 Eureka Server 注册中心
 * @author hxstrive
 */
@SpringBootApplication
@EnableEurekaServer
public class OpenfeignEurekaServerApplication {

    public static void main(String[] args) {
        SpringApplication.run(OpenfeignEurekaServerApplication.class, args);
    }

}

service-demo 服务

service-demo 服务提供简单的 GET、POST、PUT 等简单服务，用于 Spring Cloud OpenFeign 调用。

项目结构如下图：


包说明：

  • entity  存放实体，仅有一个 User 实体

  • dto  数据传输对象，其中 CommonReturn 定义了接口通用传输格式

  • handler  定义了全局异常处理器

  • exception  定义业务自定义异常类

  • controller  定义三个业务 Controller，分别用于简单 POST、GET 服务，用户信息管理 Controller

添加 Maven 依赖

pom.xml 内容如下：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.2.9</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.hxstrive</groupId>
    <artifactId>openfeign-service-demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>service-demo</name>
    <description>service-demo</description>

    <properties>
        <java.version>17</java.version>
        <spring-cloud.version>2023.0.3</spring-cloud.version>
        <base.path>${project.basedir}</base.path>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>

        <!-- spring cloud 依赖 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>

        <!-- 文件上传 -->
        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
            <version>1.4</version>
        </dependency>
    </dependencies>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <finalName>service-demo</finalName>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

application.yml 配置

application.yml 配置内容如下：

server:
  port: 8090

spring:
  application:
    name: service-demo

## 服务地址
eureka:
  client:
    enabled: true
    service-url:
      # 注册中心路径，表示我们向这个注册中心注册服务，如果向多个注册中心注册，用“，”进行分隔
      defaultZone: http://localhost:8761/eureka
  instance:
    hostname: localhost
    # 心跳间隔5s，默认30s。每一个服务配置后，心跳间隔和心跳超时时间会被保存在server端，
    # 不同服务的心跳频率可能不同，server端会根据保存的配置来分别探活
    lease-renewal-interval-in-seconds: 5
    # 心跳超时时间10s，默认90s。从client端最后一次发出心跳后，
    # 达到这个时间没有再次发出心跳，表示服务不可用，将它的实例从注册中心移除
    lease-expiration-duration-in-seconds: 10

业务类

CommonReturn.java

package com.hxstrive.service_demo.dto;

import lombok.Data;

/**
 * 通用返回对象
 * @author hxstrive.com
 */
@Data
public class CommonReturn<T> {
    private int code;
    private String message;
    private T data;
    private String appName;
    private String port;

    public static <T> CommonReturn<T> success(T data) {
        CommonReturn<T> commonReturn = new CommonReturn<>();
        commonReturn.setCode(1);
        commonReturn.setData(data);
        return commonReturn;
    }

    public static <T> CommonReturn<T> success() {
        return success(null);
    }

    public static <T> CommonReturn<T> fail(String message) {
        CommonReturn<T> commonReturn = new CommonReturn<>();
        commonReturn.setCode(0);
        commonReturn.setMessage(message);
        return commonReturn;
    }

    public CommonReturn<T> ext(String appName, String port) {
        this.setAppName(appName);
        this.setPort(port);
        return this;
    }

}

User.java

package com.hxstrive.service_demo.entity;

import lombok.Builder;
import lombok.Data;
import lombok.ToString;

/**
 * 用户实体
 * @author hxstrive.com
 */
@Data
@Builder
@ToString
public class User {
    private Long id;
    private String name;
    private Integer age;
}

BusinessException.java

package com.hxstrive.service_demo.exception;

/**
 * 业务异常
 * @author hxstrive.com
 */
public class BusinessException extends RuntimeException {

    public BusinessException() {
    }

    public BusinessException(String message) {
        super(message);
    }

    public BusinessException(String message, Throwable cause) {
        super(message, cause);
    }

    public BusinessException(Throwable cause) {
        super(cause);
    }

}

GlobalExceptionHandler.java

package com.hxstrive.service_demo.handler;

import com.hxstrive.service_demo.dto.CommonReturn;
import com.hxstrive.service_demo.exception.BusinessException;
import org.springframework.web.bind.annotation.ControllerAdvice;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.ResponseBody;

/**
 * 全局异常处理
 * @author hxstrive.com
 * @since 1.0.0  2024/10/23 9:28
 */
@ControllerAdvice
public class GlobalExceptionHandler {

    @ExceptionHandler(BusinessException.class)
    @ResponseBody
    public CommonReturn<?> handleBusinessException(BusinessException e) {
        return CommonReturn.fail(e.getMessage());
    }

    @ExceptionHandler(Exception.class)
    @ResponseBody
    public CommonReturn<?> handleException(Exception e) {
        return CommonReturn.fail("服务异常，稍后再试");
    }

}

SimpleController.java

package com.hxstrive.service_demo.controller;

import com.hxstrive.service_demo.entity.User;
import jakarta.servlet.http.HttpServletRequest;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.web.bind.annotation.*;

import java.util.Map;
import java.util.UUID;

/**
 * 简单控制器
 * @author hxstrive.com
 */
@RestController
@RequestMapping("/simple")
public class SimpleController {

    @Value("${spring.application.name}")
    private String appName;

    @Value("${server.port}")
    private String appPort;

    @GetMapping("/hello")
    public String hello(HttpServletRequest request) {
        return "Hello World";
    }

    @GetMapping("/hello2")
    public String hello2(@RequestParam("args") String[] args) {
        return "Hello World, args=" + String.join("、", args);
    }

    @GetMapping("/info")
    public String info() {
        return "appName=" + appName + " appPort=" + appPort + " uuid=" + UUID.randomUUID().toString();
    }

    @GetMapping("/get")
    public String get(@RequestParam("id") Long id) {
        return "appName=" + appName + " appPort=" + appPort + " id=" + id;
    }

    @GetMapping("/param1")
    public String param1(@RequestParam("token") String token) {
        return "token=" + token;
    }

    @GetMapping("/param2")
    public String param2(@RequestHeader("Authorization") String token) {
        return "Authorization=" + token;
    }

    @PostMapping("/param3")
    public String param3(@RequestBody String body) {
        return "body=" + body;
    }

    @GetMapping("/header1")
    public String header1(@RequestHeader("Custom-Header") String customHeader,
                          @RequestHeader("Authorization") String token,
                          @RequestHeader("Content-Type") String contentType) {
        return "Custom-Header=" + customHeader +
                "<br/>Authorization=" + token +
                "<br/>Content-Type=" + contentType;
    }

    @PostMapping("/body1")
    public Map<String,String> body1(@RequestBody Map<String,String> body) {
        body.put("service_name", "ServiceDemo");
        return body;
    }

    @PostMapping("/body2")
    public User body2(@RequestBody User user) {
        return user;
    }

    @GetMapping("/query")
    public User query(@RequestParam("id") Long id, @RequestParam("name") String name, @RequestParam("age") Integer age) {
        return User.builder().id(id).name(name).age(age).build();
    }

    @GetMapping("/interceptor")
    public String interceptor(@RequestHeader("X-Forwarded-For") String xForwardedFor, @RequestParam("msg") String msg) {
        return "xForwardedFor=" + xForwardedFor + "<br/>msg=" + msg;
    }

    @PostMapping("/encode")
    public User encode(@RequestBody User user) {
        System.out.println(user);
        return user;
    }

}

UserController.java

package com.hxstrive.service_demo.controller;

import com.hxstrive.service_demo.dto.CommonReturn;
import com.hxstrive.service_demo.entity.User;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.web.bind.annotation.*;

import java.util.ArrayList;
import java.util.List;

/**
 * 用户控制器
 * @author hxstrive.com
 */
@Slf4j
@RestController
@RequestMapping("/user")
public class UserController {
    private final static List<User> USERS = new ArrayList<>();

    static {
        USERS.add(User.builder().id(1L).name("Tom").age(20).build());
        USERS.add(User.builder().id(2L).name("Helen").age(30).build());
        USERS.add(User.builder().id(3L).name("Bill").age(40).build());
    }

    @Value("${spring.application.name}")
    private String appName;

    @Value("${server.port}")
    private String appPort;


    // GET 请求，获取所有用户信息
    @GetMapping("/getAllUsers")
    public CommonReturn<List<User>> getAllUsers() {
        log.info("getAllUsers()");
        return CommonReturn.success(USERS).ext(appName, appPort);
    }

    // GET 请求，根据用户 ID 获取用户信息
    @GetMapping("/getUserById")
    public CommonReturn<User> getUserById(@RequestParam("id") Long id) {
        log.info("getUserById() id={}", id);
        return USERS.stream()
                .filter(user -> user.getId().equals(id))
                .findFirst()
                .map(u -> CommonReturn.success(u).ext(appName, appPort))
                .orElse(CommonReturn.fail("用户不存在"));
    }

    // POST 请求，创建新用户
    @PostMapping("/createUser")
    public CommonReturn<User> createUser(@RequestBody User user) {
        log.info("createUser() user={}", user);
        USERS.add(user);
        return CommonReturn.success(user).ext(appName, appPort);
    }

    // PUT 请求，更新用户信息
    @PutMapping("/updateUser")
    public CommonReturn<User> updateUser(@RequestParam("id") Long id, @RequestBody User updatedUser) {
        log.info("updateUser() id={}, updateUser={}", id, updatedUser);
        for (int i = 0; i < USERS.size(); i++) {
            if (USERS.get(i).getId().equals(id)) {
                USERS.set(i, updatedUser);
                return CommonReturn.success(updatedUser).ext(appName, appPort);
            }
        }
        return CommonReturn.fail("更新用户信息失败");
    }

    // DELETE 请求，删除用户
    @DeleteMapping("/deleteUser")
    public CommonReturn<String> deleteUser(@RequestParam("id") Long id) {
        log.info("deleteUser() id={}", id);
        USERS.removeIf(user -> user.getId().equals(id));
        return CommonReturn.success("删除成功").ext(appName, appPort);
    }
}

UserRestfulController.java

package com.hxstrive.service_demo.controller;

import com.hxstrive.service_demo.dto.CommonReturn;
import com.hxstrive.service_demo.entity.User;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.web.bind.annotation.*;

import java.util.ArrayList;
import java.util.List;

/**
 * Restful 风格的用户控制器
 * @author hxstrive.com
 */
@Slf4j
@RestController
@RequestMapping("/user/restful")
public class UserRestfulController {
    private final static List<User> USERS = new ArrayList<>();

    static {
        USERS.add(User.builder().id(1L).name("Tom").age(20).build());
        USERS.add(User.builder().id(2L).name("Helen").age(30).build());
        USERS.add(User.builder().id(3L).name("Bill").age(40).build());
    }

    @Value("${spring.application.name}")
    private String appName;

    @Value("${server.port}")
    private String appPort;


    // GET 请求，获取所有用户信息
    @GetMapping("/getAllUsers")
    public CommonReturn<List<User>> getAllUsers() {
        log.info("getAllUsers()");
        return CommonReturn.success(USERS).ext(appName, appPort);
    }

    // GET 请求，根据用户 ID 获取用户信息
    @GetMapping("/{id}")
    public CommonReturn<User> getUserById(@PathVariable Long id) {
        log.info("getUserById() id={}", id);
        return USERS.stream()
                .filter(user -> user.getId().equals(id))
                .findFirst()
                .map((u) -> CommonReturn.success(u).ext(appName, appPort))
                .orElse(CommonReturn.fail("用户不存在"));
    }

    // POST 请求，创建新用户
    @PostMapping("/createUser")
    public CommonReturn<User> createUser(@RequestBody User user) {
        log.info("createUser() user={}", user);
        USERS.add(user);
        return CommonReturn.success(user).ext(appName, appPort);
    }

    // PUT 请求，更新用户信息
    @PutMapping("/{id}")
    public CommonReturn<User> updateUser(@PathVariable Long id, @RequestBody User updatedUser) {
        log.info("updateUser() id={}, updateUser={}", id, updatedUser);
        for (int i = 0; i < USERS.size(); i++) {
            if (USERS.get(i).getId().equals(id)) {
                USERS.set(i, updatedUser);
                return CommonReturn.success(updatedUser).ext(appName, appPort);
            }
        }
        return CommonReturn.fail("更新用户信息失败");
    }

    // DELETE 请求，删除用户
    @DeleteMapping("/{id}")
    public CommonReturn<String> deleteUser(@PathVariable Long id) {
        log.info("deleteUser() id={}", id);
        USERS.removeIf(user -> user.getId().equals(id));
        return CommonReturn.success("删除成功");
    }
}

启动类

package com.hxstrive.service_demo;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * 入口
 * @author Administrator
 */
@RestController
@SpringBootApplication
public class OpenfeignServiceDemoApplication {

    @Value("${spring.application.name}")
    private String appName;

    @Value("${server.port}")
    private String appPort;


    public static void main(String[] args) {
        SpringApplication.run(OpenfeignServiceDemoApplication.class, args);
    }


    @GetMapping("/")
    public String index() {
        return "appName=" + appName + ", appPort=" + appPort;
    }

    @GetMapping("/hello")
    public String hello() {
        return "Hello World! appName=" + appName + ", appPort=" + appPort + "!";
    }

}

运行效果

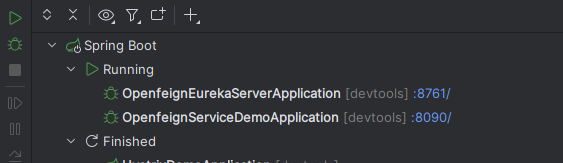

先启动前面创建的 Eureka 服务端，然后启动 service-demo 服务，成功启动后，状态如下图：

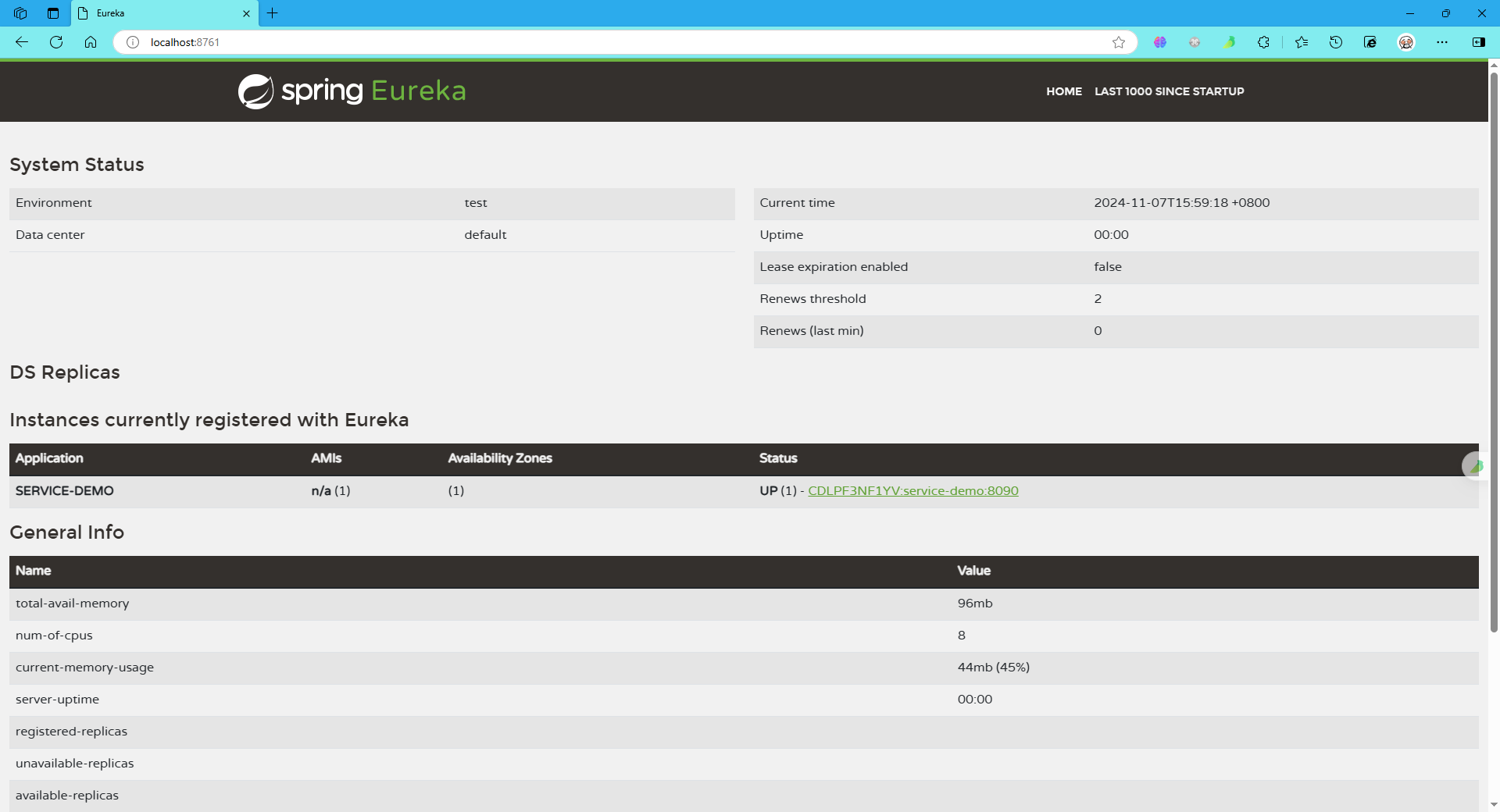

访问 http://localhost:8761 地址，查看 Eureka 管理页面，如下图：

ce3eb662639ac7baa782c4318cc38389_1730966379411-b3ee1783-c2fa-439a-a57d-e142d7d3544d.png

如果能够正常看见该页面，且存在 SERVICE-DEMO 服务，则环境准备成功了。

此时，可以进行后续 Spring Cloud OpenFeign 的学习了……

上一章：Spring Cloud OpenFeign 简介
说说我的看法
全部评论（）
没有评论
关于
本网站专注于 Java、数据库（MySQL、Oracle）、Linux、软件架构及大数据等多领域技术知识分享。涵盖丰富的原创与精选技术文章，助力技术传播与交流。无论是技术新手渴望入门，还是资深开发者寻求进阶，这里都能为您提供深度见解与实用经验，让复杂编码变得轻松易懂，携手共赴技术提升新高度。如有侵权，请来信告知：hxstrive@outlook.com
链接
其他应用
公众号
©2018-2020 hxstrive.com 版权所有 ICP证：蜀ICP备14031461号-2   川公网安备51010802032098
